DIWO-PS123Z-10Y-SS1

Artikelnummer: DIWO-PS123Z-10Y-SS1 Kategorie: Piezotaster Schlagwort: Piezotaster

Beschreibung

12 Piezotaster
Datenblatt >>

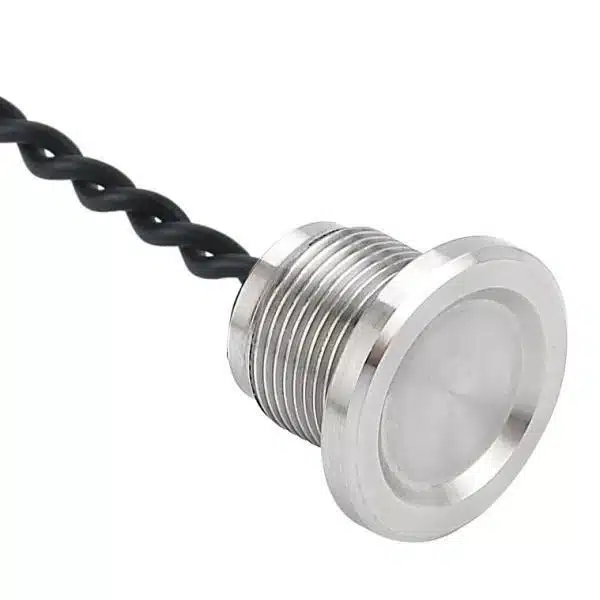

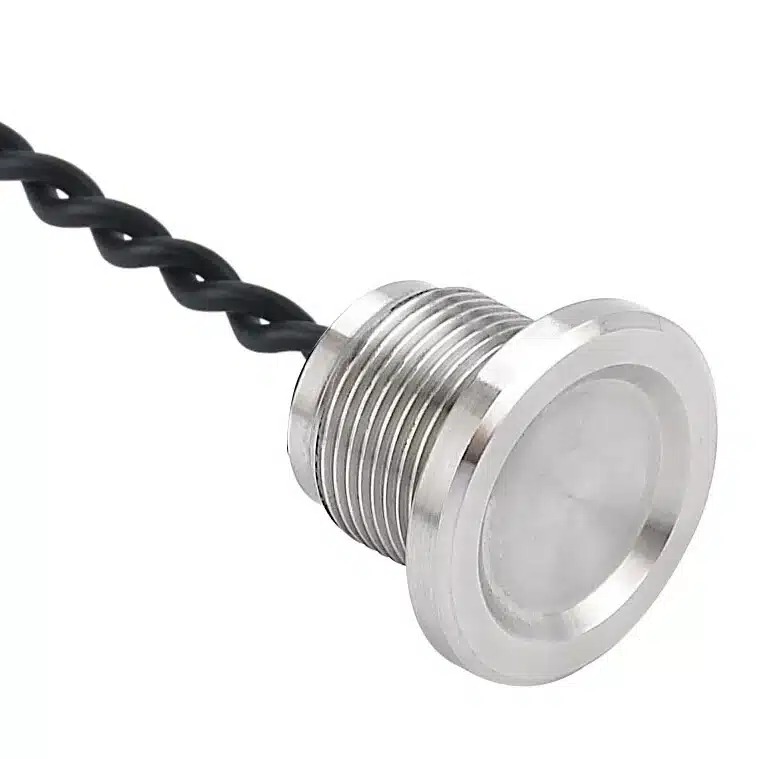

Piezotaster DIWO-PS123Z-10Y-SS1

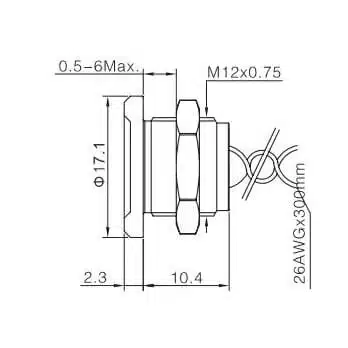

Einbaudurchmesser (mm): 12
Hauben-Design: Konkav
Material: Edelstahl
Schutzklasse: IP68 / IK10
Betätigungskraft: 5N – 10N
Kontaktkonfiguration: 1NO
Strombelastbarkeit: 200mA 24VAC/DC
Schaltwiderstand ON: 10 Ωmax.
Schaltwiderstand OFF: 5MΩ min.
Betriebstemperatur: -40°C to +75°C
Vibrationsfestigkeit: 10-500 Hz / 10 g
Lebensdauer: 50 Millionen Zyklen
Plattendicke Einbau: 1-8mm
Anschluss: Mehrdrahtige Leitungen, Querschnitt 0,22 mm, paarweise verdrillt, Länge 300 mm
Zertifizierung: CE,ROHS,REACH

Alle Angaben beruhen auf Aussagen unserer Lieferanten. Gewähr der Angaben nur durch explizite Bestätigung von N&H Technology. Technische Änderungen vorbehalten.
